Project description: Amusement Parks


Engineering and software-development for a well-known Swiss company, manufacturing amusement parks worldwide.

Summer 2002

Amusement Park at Riyadh, Saudi Arabia

BNB developed the Software for:

  • Siemens PLC S7
  • Incl. commissioning, Customer Training



Complete Electro Engineering including Safety Issues for Ride Safety Control has been done by BNB

  • Engineering
  • Electro Schematics done on Standard E- CAD

Further Information to the ride: www.alhokair.com



Ride Information:

  • The Ride takes about 2.5 Minutes
  • The Boats are build for 3 adults and 3 kids. (That's the reason why we call it Junior Ride)
  • PLC Controlled and monitored.
  • Can be operated by 1 person with a couple of cameras to check for the safety of the person.
  • There are usually 7 Boats on the ride.

Im Park mit Pers

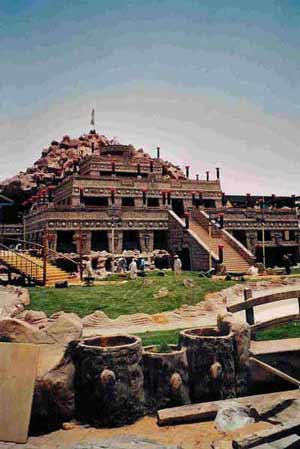

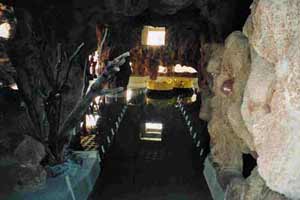

alhokair2.jpg alhokair5.jpg

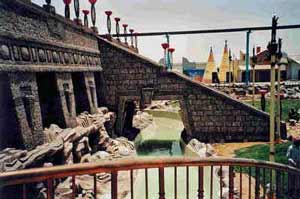

alhokair3

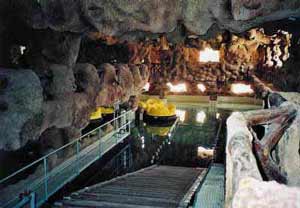

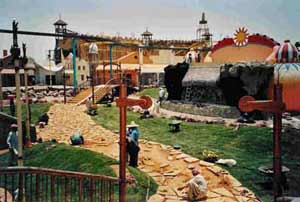

alhokair1 alhokair6

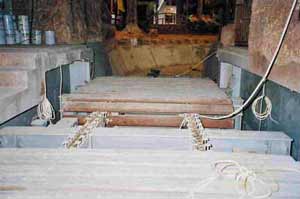

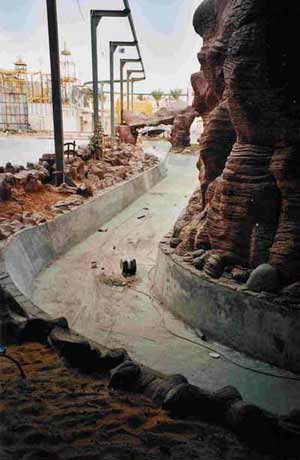

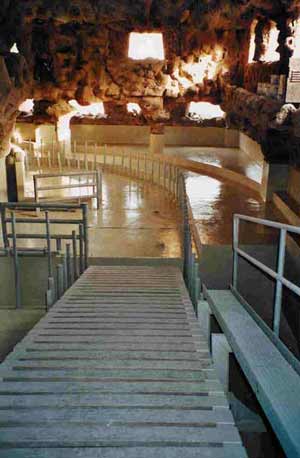

Startup- Phase (Channel still empty, Not wired everything)
alhokair7 alhokair8
alhokair11

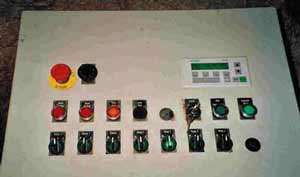

Control - Panel  with Operator Panel

alhokair4

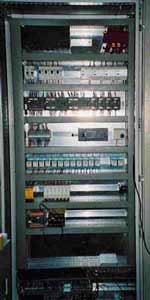

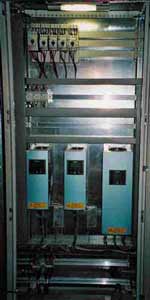

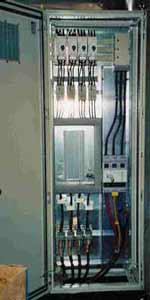

alhokair12     alhokair10    alhokair9
